RISC-V Graphical Datapath Simulator

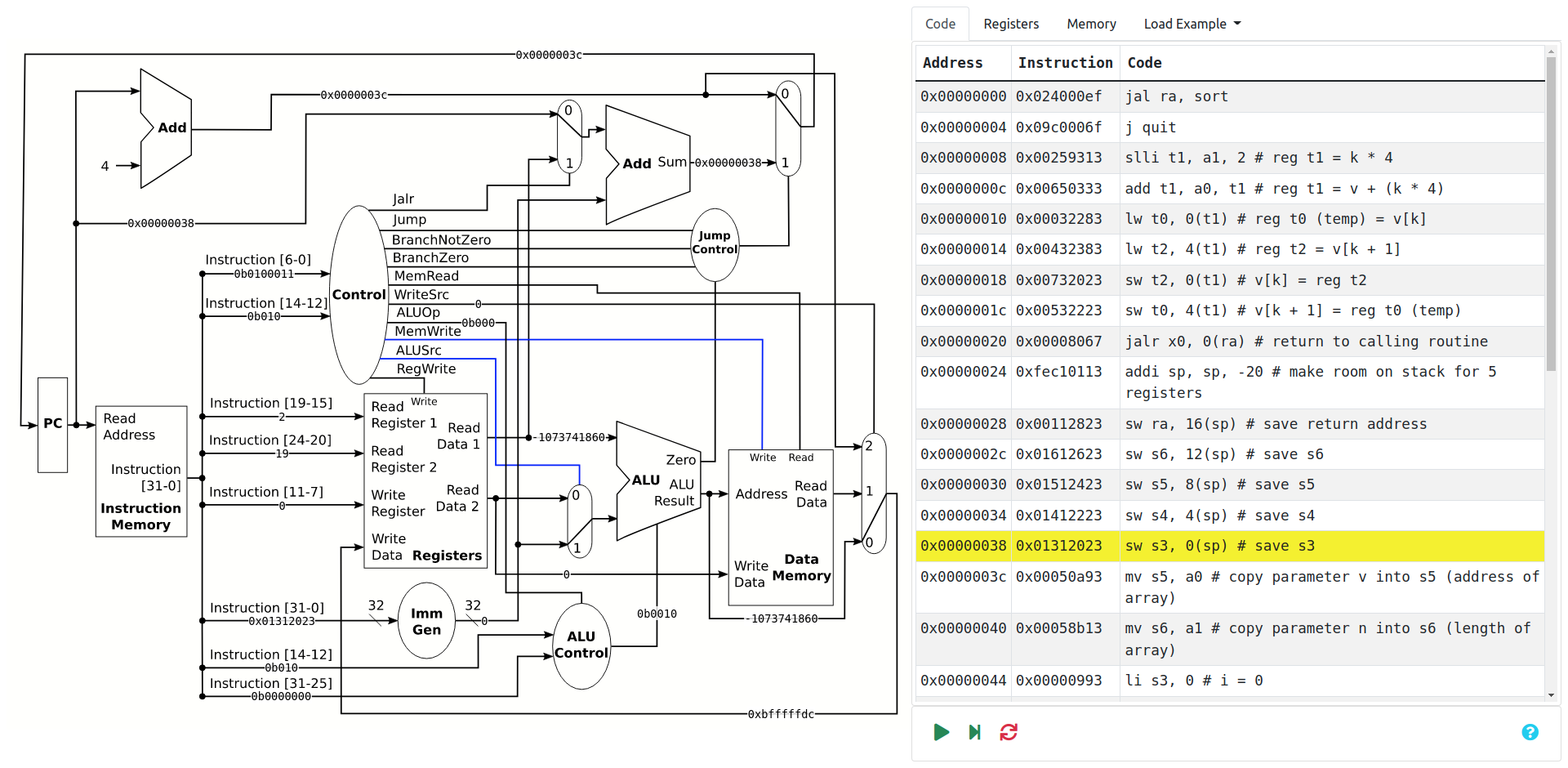

This is a web-based graphical simulator for a simple 32-bit, single-cycle implementation of RISC-V. The simulator lets you step through a RISC-V program and view the current values of wires and components on the datapath and explanations of what each of the datapath components do. This is very useful for teaching or learning about the RISC-V datapath. All the 32-bit integer instructions are supported except the syscall and concurrency related instructions. The datapath is closely based on the design described in Computer Organization and Design RISC-V Edition. The simulator is available at https://jesse-r-s-hines.github.io/RISC-V-Graphical-Datapath-Simulator. The project is written in TypeScript and React and uses webpack to bundle the project. RISC-V Graphical Datapath Simulator is the open-source project jesse-r-s-hines/RISC-V-Graphical-Datapath-Simulator (https://github.com/jesse-r-s-hines/RISC-V-Graphical-Datapath-Simulator) by jesse-r-s-hines, released under LGPL-3.0. Ion packages it unmodified from commit 24e35781faed, adding only a manifest, an icon and a storage compatibility script.

Written by jesse-r-s-hines, published to Oikou by Ben Grande.

• ★ 30 stars on GitHub
• Licence: LGPL-3.0
• Built from commit 24e35781faed

View the repository on GitHub

Not rated. Nobody has said who this app is suitable for, so Personal Clouds and the Oikou app treat it as 18+.

Internet

It asks to reach nothing on the internet.

Personal Cloud tools

None. It uses nothing from your Personal Cloud beyond its own storage.

Notifications

It does not send push notifications.

Storage

Up to 16 MB on your Personal Cloud.

Sign in to add this web app to a Personal Cloud of yours. It runs there, on your own computer, and you open it from there; nothing is installed on your phone.

Sign in to add
